Typical Specification:
Device shall be Tjernlund Model LB1.
Device shall include a five (5) year material, workmanship and no-clog
guarantee.
Device shall feature a metal, reverse-inclined particulate handling
impeller that will not clog with lint.
Device shall feature a self-cleaning pressure sensing tube.
Device shall feature a motor located outside the dryer exhaust air
stream.
Device shall feature a rubber isolated mounting bracket.
Device shall be acceptable for installation in unattended spaces.
Device shall be Listed in the USA to ANSI/UL 507 and in Canada to CSA
C22.2 #113-M. |
|
Description:

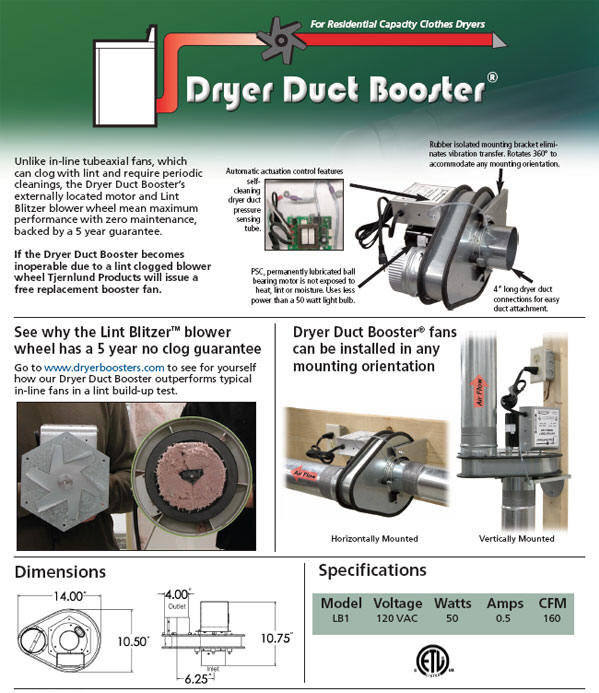

The LB1 maintains clothes dryer exhaust air velocities at proper levels
when dryer exhaust duct lengths exceed dryer manufacturer
recommendations. Suitable for up to 100 equivalent feet of duct.
Housing:
22 gauge G90 galvanized steel. Features rubber isolated mounting
brackets which minimize vibration transfer.
Control:
Pressure sensing with self-cleaning sensing tube design.
Automatically activates fan based on operation of dryer.
Material Handling Impeller:
The LB-1 Lint Blitzer Reverse inclined, particulate handling impeller
repels lint. 18 gauge G90 galvanized steel.
Motor:
PSC, permanently lubricated ball bearing motor is located outside the
dryer exhaust air stream to prevent exposure to heat, lint and moisture.
Supply Power:
Six foot 115V AC power cord factory installed and prewired.
Requires installation adjacent to a standard electrical outlet.
Automatically actuated by pressure sensing control.
Installation Notes:
Can be installed with discharge in horizontal or vertical orientations.
Vertical orientations must discharge facing up.
Suitable for installation in ambient temperatures between: -20° F and
140° F ( -29° C and 60° C).
Suitable for dryer duct temperatures up to 175° F (80° C).
Warranty:
Five (5) year material, workmanship and no-clog guarantee.
|
