Tjernlund Parts List

In-Line Draft Inducer Parts

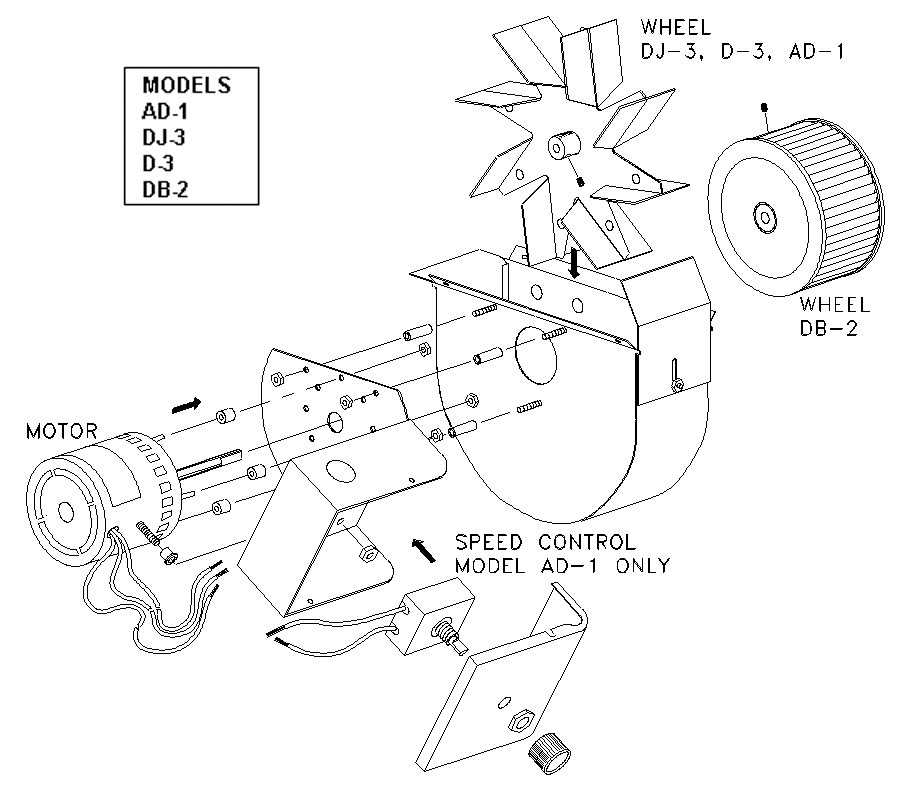

AD-1

Part Number   Description
950-3012   Wheel Kit
950-3022 Stock Part Motor Kit
950-4030 Stock part Speed Control Kit



DJ-3

Part Number   Description
950-3000   Housing Kit
950-3010   Wheel Kit
950-3020   Motor Kit



D-3

Part Number   Description
950-3002   Housing Kit
950-3012   Wheel Kit
950-3022 Stock part Motor Kit



I

Part Number   Description
950-4000   Housing Kit
950-4010   Wheel Kit
950-4020   1/4 H.P. Motor Kit
950-0131   Canadian 1/3 H.P. Motor Kit
950-4025   Shaft Extension Kit



IL

Part Number   Description
950-5000   Housing Kit
950-5010   Wheel Kit
950-4020   1/4 H.P. Motor Kit
950-0131   Canadian 1/3 H.P. Motor Kit
950-4025   Shaft Extension Kit



XL

Part Number   Description
950-6000   Housing Kit
950-6010   Wheel Kit
950-1017   1 H.P. Motor Kit
950-6025   Shaft Extension Kit

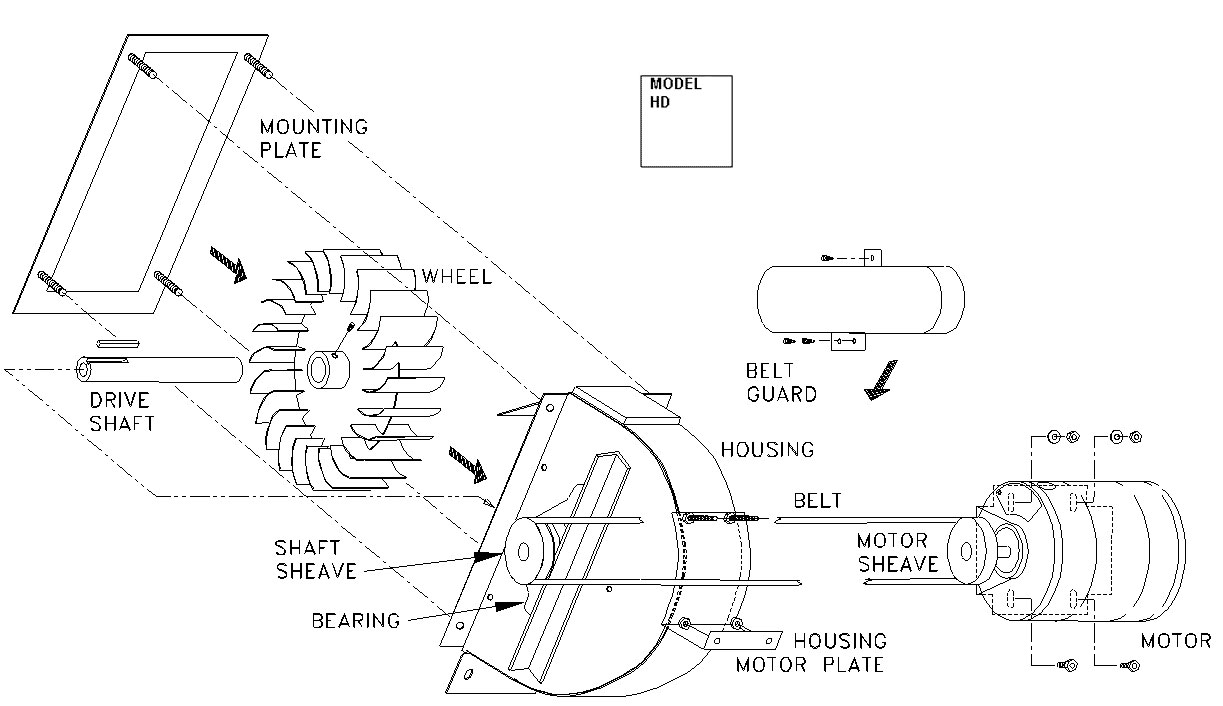

HD

Part Number   Description
950-1457   Belt Guard (Round)
950-0117   Belt Kit
950-0106   Motor Sheave Kit
950-0104   Shaft Sheave Kit
950-0151   2 H.P. Motor Kit
950-0947   Housing Kit (Round)
950-1447   Mounting Plate (Round)
950-0114   Drive Shaft Kit
950-0108   Bearing Kit
950-1074   Wheel Kit



Side Wall Vent Systems Parts

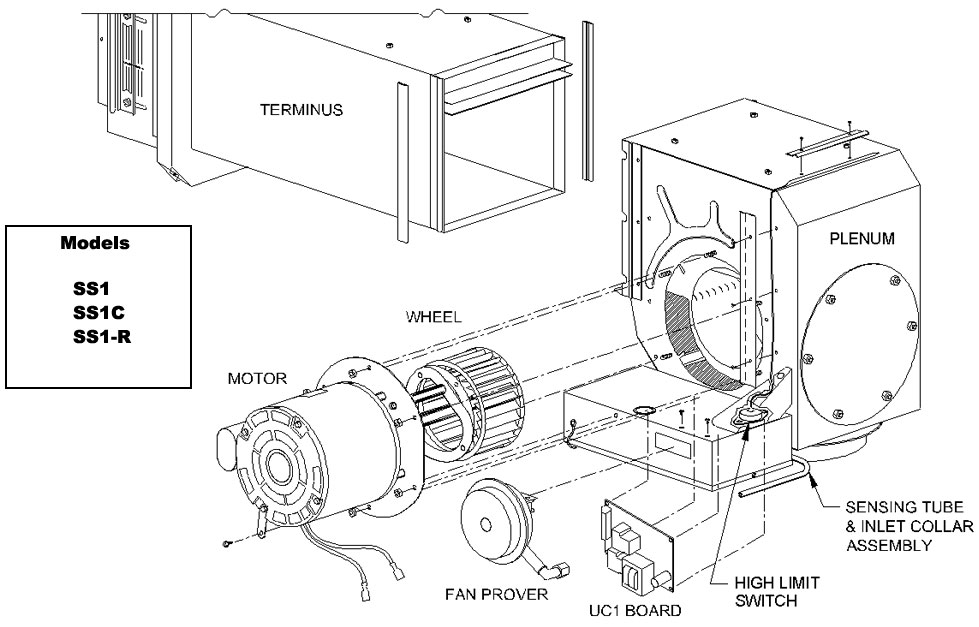

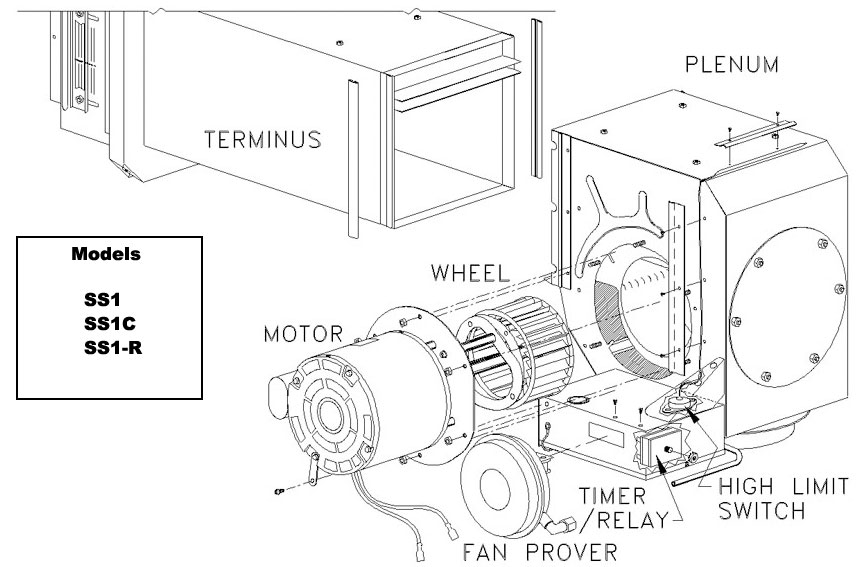

SS1

Includes UC1
(Date Codes Starting 07/02)

Prior to UC1
(Date Codes Starting
9517 through 06/02)

Part Number   Description
950-0670   SS1 Plenum Section (Includes UC1)
950-8804 Stock part UC1 Control Circuit Board (Since 7/02)
950-1067   Timer/Relay 1-10 Min. Adjust (Pre UC1)
950-0650 Stock part SS1 Fan Prover Kit
950-0640   High Limit Switch
950-0680   Terminus Kit
950-0625 Stock part *Motor with Wheel 5/8"
950-0635 Stock part Wheel 5/8" Bore
950-0001   Sensing Tube w/Inlet Collar
950-0620   SS1 Mounting Kit
950-0011   Terminus Cone w/Brackets
950-0685   Terminus Drip Deflector Kit
950-0675   Terminus Rain Shield Kit
*Replacement motors on SS1 with Date codes prior to 26/92 must order entire plenum section.

SS1C

Includes UC1
(Date Codes Starting 07/02)

Prior to UC1
(Date Codes Starting
9517 through 06/02)

Part Number   Description
950-0770   SS1C Plenum (Includes UC1)
950-8804 Stock part UC1 Control Circuit Board (Since 7/02)
950-1067   Timer/Relay 1-10 min. Adjust (Pre UC1)
950-0750   SS1C Fan Prover Kit
950-0745   SS1C Fan Prover Orifice Kit (2)
950-0740   SS1C High Limit
950-0780   SS1C Terminus Kit
950-0625 Stock part * Motor with Wheel 5/8"
950-0635 Stock part Wheel 5/8" Bore
950-0001   Sensing Tube w/Inlet Collar
950-0620   SS1 Mounting Kit
950-0011   Terminus Cone w/Brackets
950-0685   Terminus Drip Deflector Kit
950-0675   Terminus Rain Shield Kit
*Replacement motors on SS1 with Date codes prior to 26/92 must order entire plenum section.

SS1-R

Includes UC1
(Date Codes Starting 07/02)

Prior to UC1
(Date Codes Starting
9517 through 06/02)

Part Number   Description
950-8804 Stock part UC1 Control Circuit Board (Since 2/04)
950-1067   Timer/Relay 1-10 Minute Adjustable (Pre UC1)
950-0750   Fan Prover kit
950-0640   High Limit
950-0680   Terminus Kit
950-0625 Stock part Motor w/Wheel 5/8"
950-0635 Stock part Wheel 5/8" Bore
950-0690   Oil Solenoid
950-0695   120V R1 Relay
950-0001   Sensing Tube With Inlet collar
950-0620   SS1 Mounting Kit
950-0011   Terminus Cone With Brackets
950-0685   Terminus Drip Deflector Kit
950-0675   Terminus Rain Shield Kit

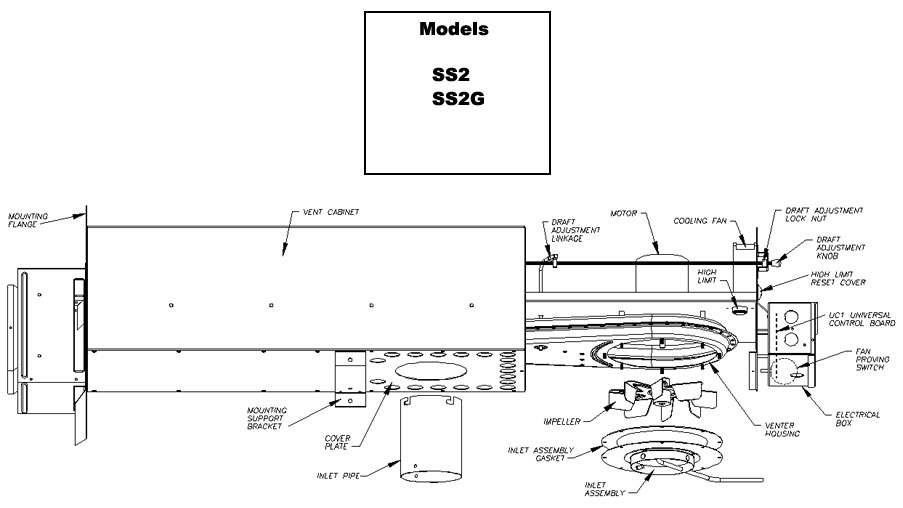

SS2,  (SS2G - Discontinued)

Part Number   Description
950-0032   SS2 Venter Assembly (Includes UC1)
950-8804 Stock part UC1 Control Circuit Board (Since 7/02)
950-1067   Timer/Relay 1-10 Minute Adjustable (Pre UC1)
950-0029 Stock Part * Prover (Since 7/02 Internal J Box Mount)
950-0016   * Prover (Old Style External J Box Mount)
950-0018   High Limit Kit
950-0015 Stock part Motor Kit
950-0017 Stock part Impeller (Stainless)
950-0019   Venter Housing (Stainless)
950-0020   Cooling Fan
950-0099   Terminus Cabinet
950-0030   SS2 Inlet Pipe
950-0031   Sensing Tube W/Inlet Assembly & Gasket
950-0033   SS2 Mounting Kit
* Fan Provers are not Interchangeable Internal J Box Switch Used Since 7/02

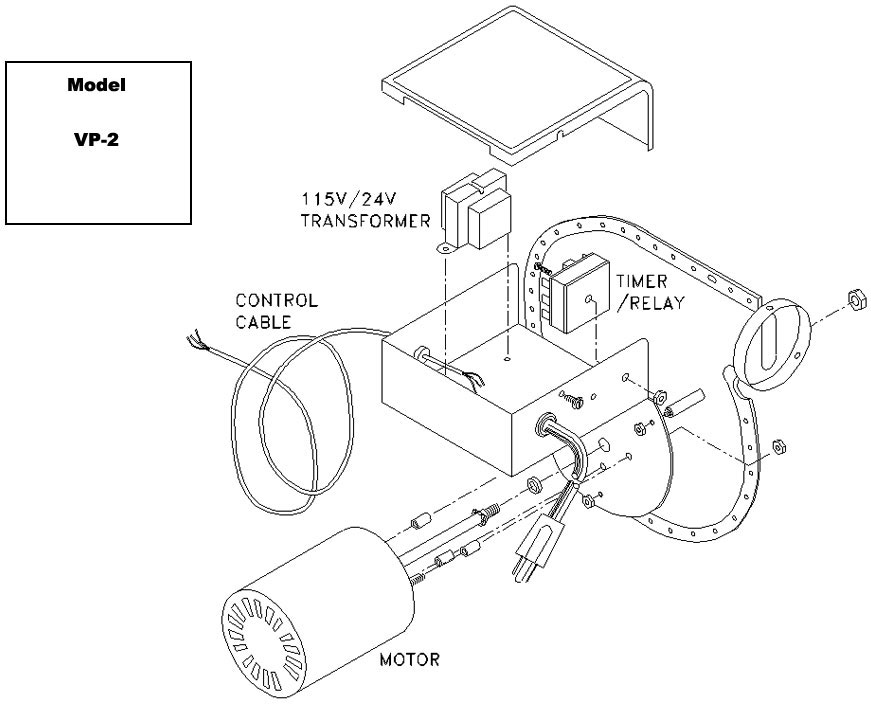

VP-2

Part Number   Description
950-2000   Housing/Wheel Kit
950-2020   Motor Kit
950-0014   Timer/Relay 45 Second Nonadjustable Since 9741
950-1067   Timer/Relay 1-10 Minute Adjustable
950-2030   115/24V 20VA Transformer
950-2040   Solenoid Valve
950-2060   Control Cable
950-2064   185 Deg. F. Linear Limit Switch (New Style)
950-2070   (2) 200 Deg. F. Spill Switches (Old Style)
950-2050   Spill Switch Cable (Old Style)
950-2080   Gas Pressure Switch
950-2061 Stock Part Pilot Saver Kit
950-1070   Vibration Insolator Kit
950-2010   VP-2 Venter Only

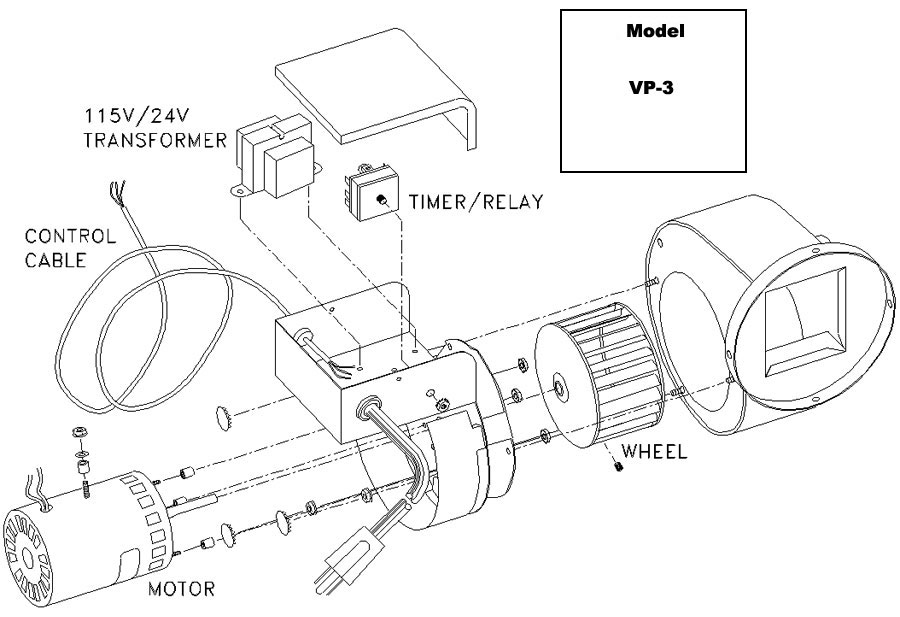

VP-3

Part Number   Description
950-1020 Stock Part Motor Kit
950-1010   Wheel Kit
950-0014   Timer/Relay 45 Second Nonadjustable Since 9741
950-1067   Timer/Relay 1-10 Minute Adjustable
950-2030   115/24V 20VA Transformer
950-2040   Solenoid Valve
950-2060   Control Cable
950-2064   185 Deg. F. Linear Limit Switch (New Style)
950-2070   (2) 200 Deg. F. Spill Switches (Old Style)
950-2050   Spill Switch Cable (Old Style)
950-2080   Gas Pressure Switch
950-2061 Stock Part Pilot Saver Kit
950-1070   Vibration Isolator Kit
950-2015   VP-3 Venter Only




Power Venter Parts

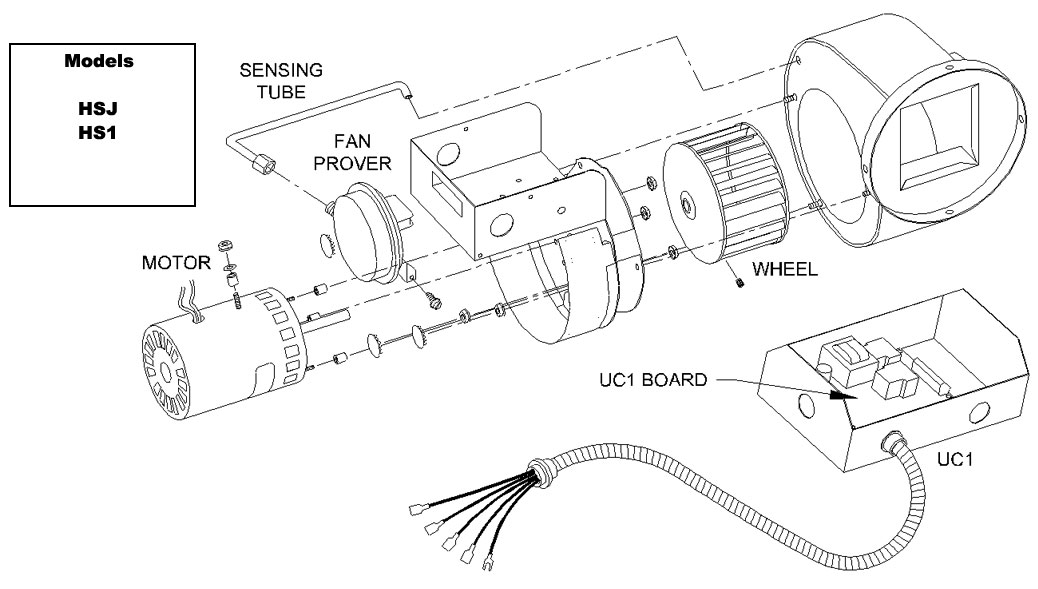

HSJ (Includes UC1 Control)

Part Number   Description
950-1020 Stock Part Motor Kit
950-1010   Wheel Kit
950-1030   Fan Prover With Sensing Tube Kit
950-8804 Stock part UC1 Circuit Board (Since 8/02)



HST-J

Part Number   Description
950-1020 Stock Part Motor Kit
950-1010   Wheel Kit
950-1030   Fan Prover With Sensing Tube Kit
950-1067   Timer/Relay 1-10 Minute Adjustable



HS1 (Includes UC1 Control)

Part Number   Description
950-1020 Stock Part Motor Kit
950-1011 Stock Part Wheel Kit
950-1030   Fan Prover With Sensing Tube Kit
950-8804 Stock part UC1 Circuit Board (Since 8/02)

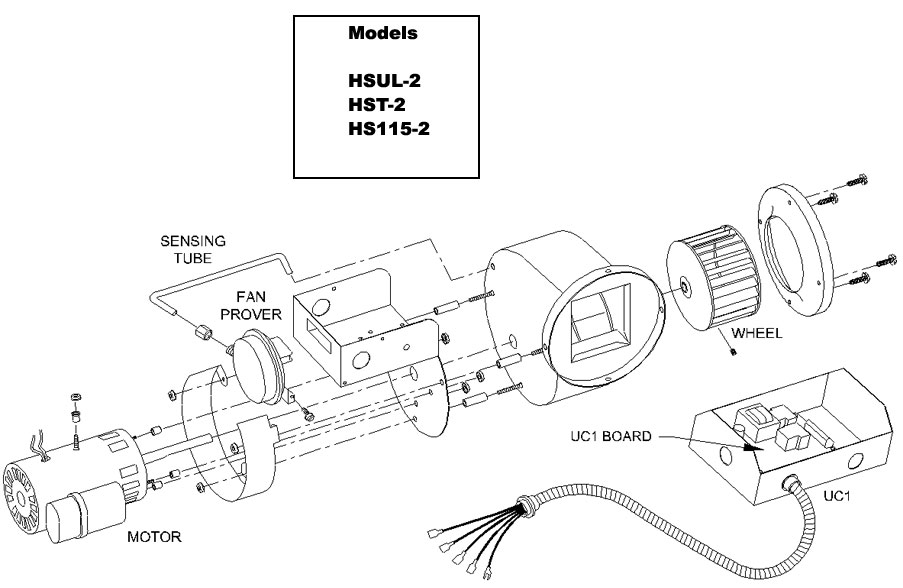

HS2 (Includes UC1 Control)

Part Number   Description
950-1021   Motor Kit With Wheel
950-1012   Wheel Kit 3/8" Bore
950-1031   Fan Prover With Sensing Tube Kit
950-8804 Stock part UC1 Circuit Board (Since 8/02)



Commercial Power Venter Parts

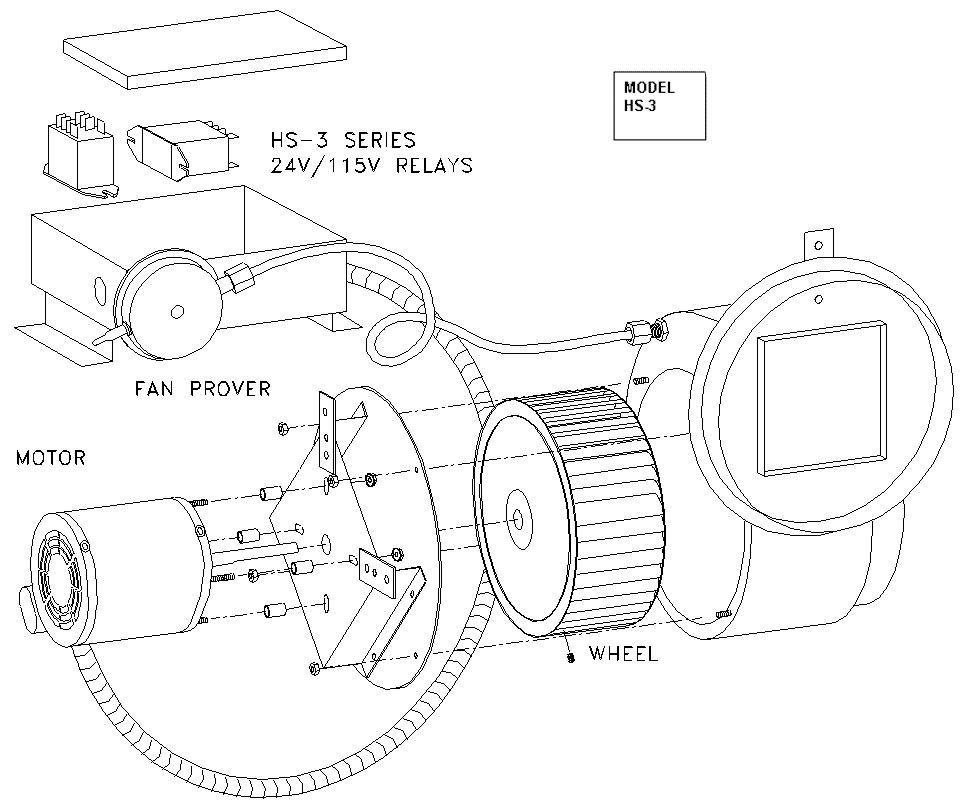

HS3 (Includes UC1 Control) / HS-3 (Discontinued)

Includes UC1
(Date Codes Starting 07/02)

Prior to UC1

Part Number   Description
950-1022   Motor Kit
950-1013   Wheel Kit
950-1032   * Fan Prover Kit
950-1046   HS3 Housing Sensing Tube Kit
950-1014   Housing
950-8804 Stock part UC1 Circuit Board (SINCE 9/02)
950-1040   ** Isolation or Motor Relay
* Models prior to 1992 with sensing elbow near positive discharge of housing must order PS1301 Positive Pressure Switch.
** Only used for HS-3 models prior to the UC1 change over date 9/02.

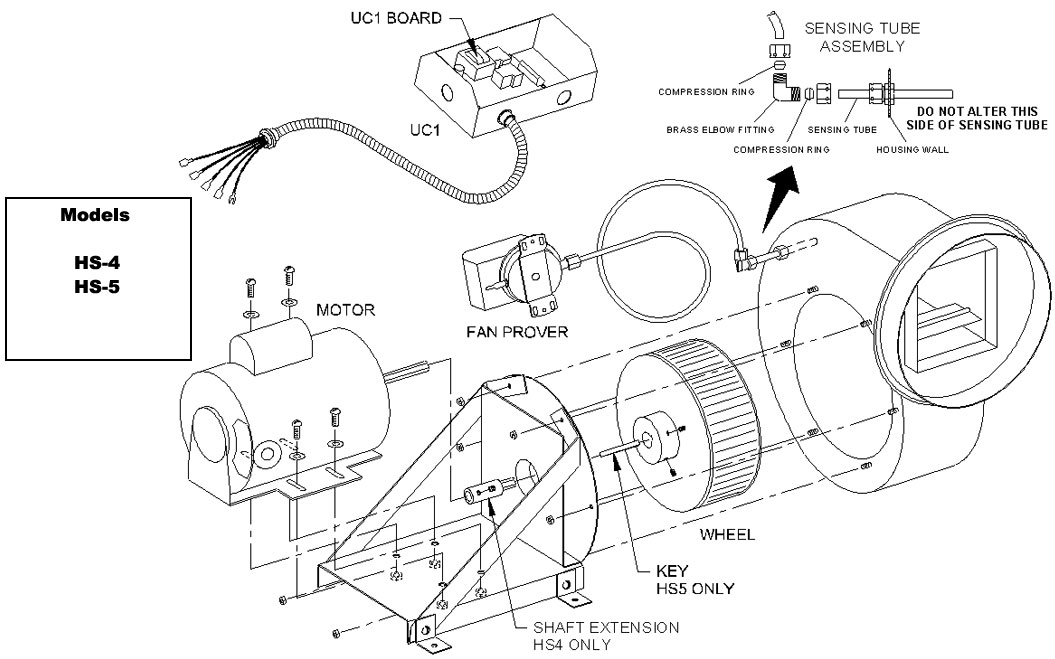

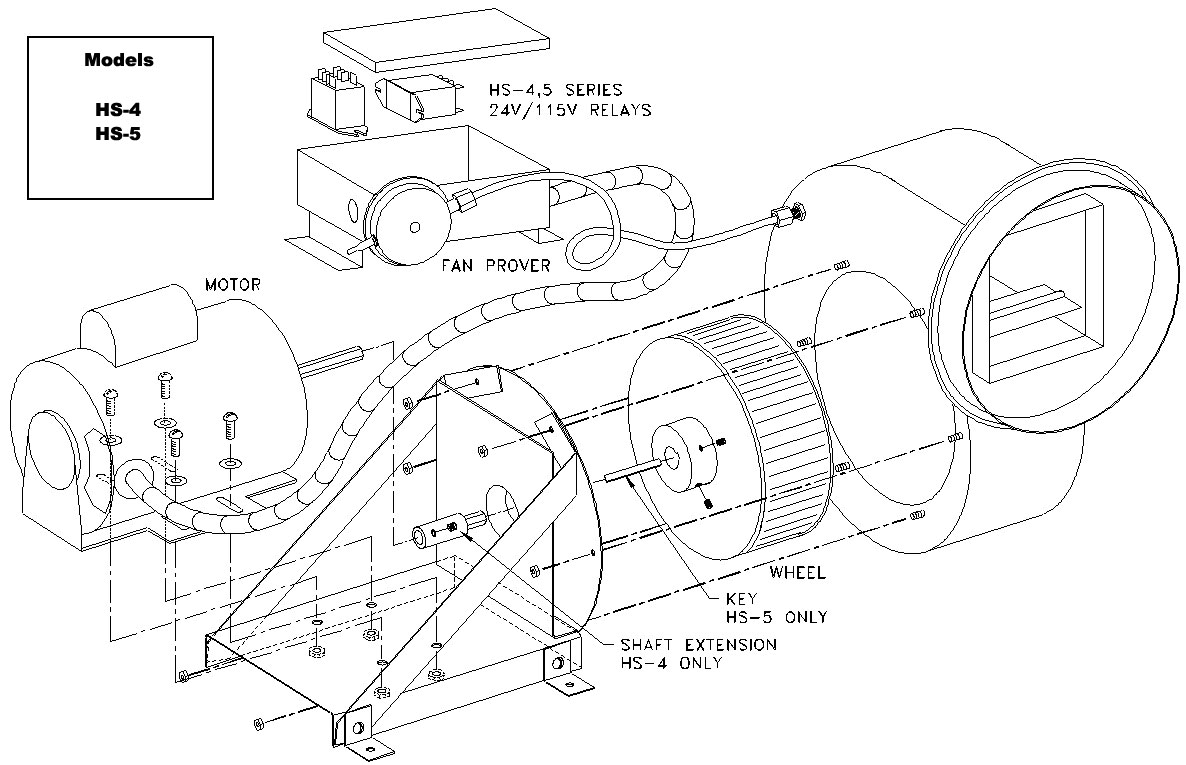

HS4 (Includes UC1 Control) / HS-4 (Discontinued)

Includes UC1
(Date Codes Starting 07/02)

Prior to UC1

Part Number   Description
950-0131   1/3 H.P. Motor Kit
950-1013   Wheel Kit
950-0010   HS4 Shaft Extension
950-1007   Fan Prover Kit
950-1047   HS4 Housing Sensing Tube
950-1008   Housing
950-8804 Stock part UC1 Circuit Board (SINCE 9/02)
950-1040   * Isolation or Motor Relay
* Only used for HS-4 models prior to the UC1 change over date 9/02



HS5 (Includes UC1 Control) / HS-5 (Discontinued)

Includes UC1
(Date Codes Starting 07/02)

Prior to UC1

Part Number   Description
950-1017   1 H.P. Motor Kit
950-1015   Wheel Kit
950-1007   Fan Prover Kit
950-1048   HS5 Housing Sensing Tube
950-1018   Housing
950-8804 Stock part UC1 Circuit Board (SINCE 9/02)
950-1016   * Motor Relay Kit
950-1040   * Isolation Relay
* Only used for HS-5 models prior to the UC1 change over date 9/02



Combustion Air Intake Equipment Parts

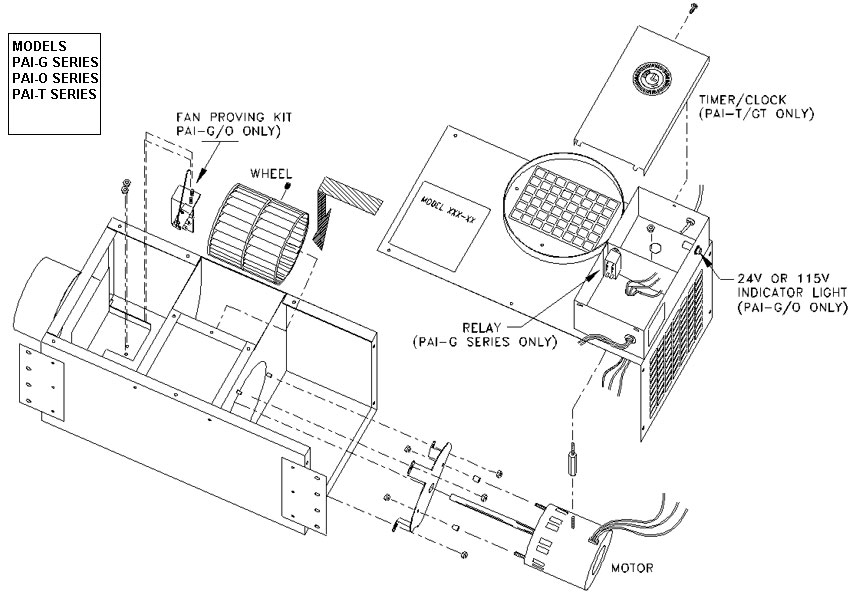

PAI-1G

Part Number   Description
950-3022   Motor Kit
950-0451   Wheel Kit
950-0452   Fan Prover Kit
950-1040   Relay Kit
950-0455   24V Indicator Light



PAI-2G

Part Number   Description
950-3022   Motor Kit
950-0457   Wheel Kit
950-0452   Fan Prover Kit
950-1040   Relay Kit
950-0455   24V Indicator Light



PAI-1O

Part Number   Description
950-3022   Motor Kit
950-0451   Wheel Kit
950-0452   Fan Prover Kit
950-0456   115V Indicator Light



PAI-2O

Part Number   Description
950-3022   Motor Kit
950-0457   Wheel Kit
950-0452   Fan Prover Kit
950-0456   115V INDICATOR LIGHT

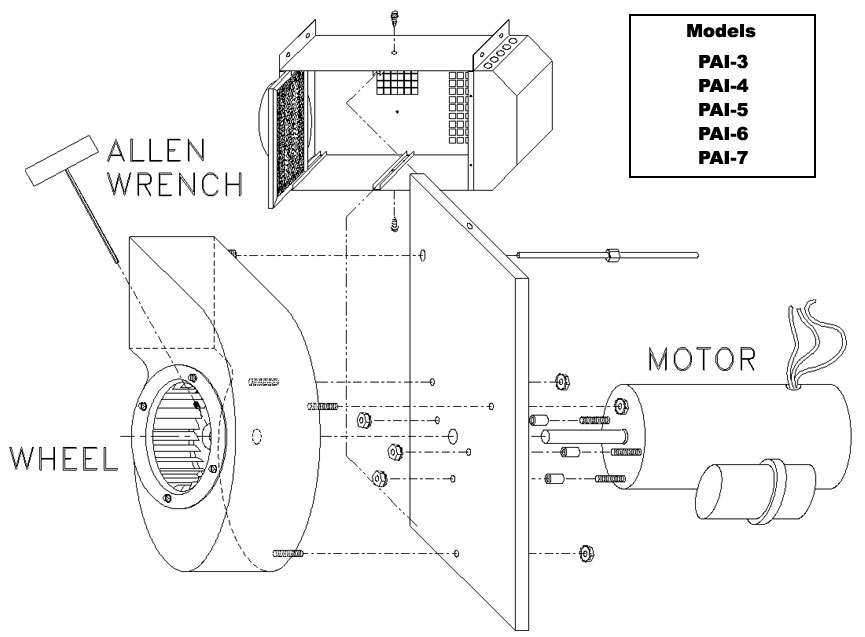

PAI-3

Part Number   Description
950-1020 Stock Part Motor Kit
950-1011 Stock Part Wheel Kit
950-0476   Fan Prover Kit
950-0482   Prefilter
950-0021   Intake Hood
950-0018   High Limit



PAI-4

Part Number   Description
950-1021   Motor Kit
950-1012   Wheel Kit
950-0474   Fan Prover Kit
950-0482   Prefilter
950-0022   Intake Hood
950-0018   High Limit



PAI-5

Part Number   Description
950-4020   1/4 H.P. Motor Kit
950-0486   Wheel Kit
950-0472   Fan Prover Kit
950-0488   Prefilter
950-0023   Intake Hood
950-0018   High Limit



PAI-6

Part Number   Description
950-0131   1/3 H.P. Motor Kit
950-0487   Wheel Kit
950-0472   Fan Prover Kit
950-0488   Prefilter
950-0023   Intake Hood
950-0018   High Limit



PAI-7

Part Number   Description
950-1017   1 H.P. Motor Kit
950-1015   Wheel Kit
950-0471   Fan Prover Kit
950-0485   Prefilter
950-0024   Intake Hood
950-0018   High Limit



Fresh Air Intake Equipment Parts

PAI-1T



Part Number   Description
950-3022   Motor Kit
950-0451   Impeller Kit
950-0453   Timer/Clock Kit



PAI-2T



Part Number   Description
950-3022   Motor Kit
950-0457   Impeller Kit
950-0453   Timer/Clock Kit



Duct Booster Parts

DB-2



Part Number   Description
950-7000   Housing Kit
950-7010   Wheel Kit
950-7025   * Motor Kit
* Replacement motors on DB-2 with date codes prior to 3/93 must order complete DB-2



EA-5



Part Number   Description
950-0416   Motor Kit
950-0417   Impeller Kit



EF-6



Part Number   Description
950-0416   Motor Kit
950-0417   Impeller Kit



EF-8



Part Number   Description
950-0428   Motor Kit
950-0418   Impeller Kit



EF-10



Part Number   Description
950-0425   Motor Kit
950-0419   Impeller Kit



EF-12

Part Number   Description
950-0424   Motor Kit
950-0420   Impeller Kit



EF-14

Part Number   Description
950-0423   Motor Kit
950-0421   Impeller Kit



Miscellaneous Parts

Miscellaneous Parts



Part Number   Description
950-2075   (1) 200 Degree F. Spill Switch
950-0470   Thermocouple Junction Adaptor
950-2061   VP-2/3, WHK-2 Pilot Saver Kit
950-1049   1/4" Aluminum Tubing 5 Foot Coil
950-2043   ND-1 Post Purge Burner Kit
950-0012   HSJ/1 & GPAK Prover Sensing Tube (3 Ea.)
950-0013   HS2 Fan Prover Sensing Tube (3 Ea.)
950-1040   24/115 VOLT 1/2 H.P. Relay
950-0480   115/115 VOLT 1/2 H.P. Relay
950-1016   24/115 VOLT 1 1/2 H.P. Relay
950-0483   115/115 VOLT 1 1/2 H.P. Relay



Please call 800 685 8263 with any questions or to order any additional parts



Visit Volko Supply Online www.Volko.com

check out our selection of other quality products....and more!            Directions @

Chimney Fans Crawlspace Fans Chimney Caps Chimney Dampers wood vents copper stuff

The Exhausto RS residential type chimney top mounted fan to be used in conjunction with wood, gas, oil and coal fired appliances. The fan can be used with fireplaces, fireplace inserts, stoves, ovens, BBQ's, water heaters, furnaces, small boilers and more.

Volko fireplace & chimney caps...large selection of chimney cap cover solutions...Weathershield Chimney Caps Chimalator top sealing chimney dampers. Click to visit Volko.com and see a wonderful collection of Wood Floor Vents Click to visit Volko.com and see a wonderful collection of quality home items

Full service does still exist, and here the premium is on service not on price.   1-800-685-8263
© 2005 Draft Inducer Source / Volko Supply Co. Inc
